Hoshizaki FM-150KE 130KG FLAKE ICE MAKER

  • Image 1

PURE & COOL COMMERCIAL ICE MAKER MACHINE

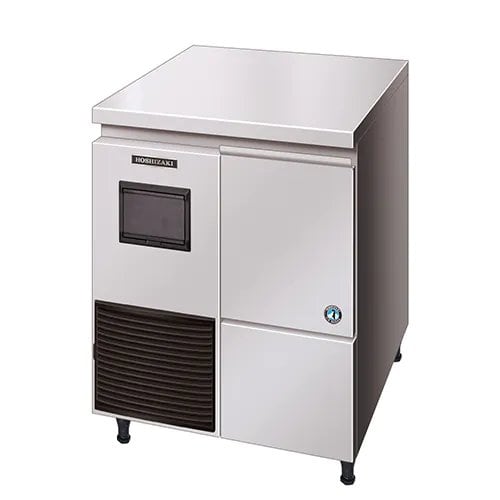

This Hoshizaki FM-150KE is a self-contained flake ice maker producing up to 130 kg of high-quality [flake] ice per 24 hours.

This commercial modular ice maker produces flake ice, which is often used for producing display of fish, fresh food and bottled beverages. In the medical field, flake ice is also used for organ transportation. Utilizing the most efficient ice making process due to the unique auger system, water consumption is equal to ice production.

Features

  • “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
  • Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
  • One piece bin moulding – rounded corners for hygiene and ease of cleaning.
  • Automatic flush function, helps keep the ice making system clean.
  • Integrated door handle for ease use and hygiene.
  • Controller board with Operational Status display assists in troubleshooting.
  • Due to the auger system, water consumption is equal to ice production.
  • Can be converted to nugget ice by changing the extruding head and cutter (parts at an additional cost).
  • 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.

Specifications

Production Capacity per 24hours Approx. 150kg @10°C Air temp; 10°C Water
Approx. 130kg @ 21°C Air temp; 15°C Water
Approx. 110kg @ 32°C Air temp; 21°C Water
Max Storage Capacity Approx. 26kg -Leveled
Width 640mm
Depth 600mm
Height 803mm
(Includes 70mm-110mm Legs)
Weight Net 71kg
Packed Weight 82kg
Cooling Air
AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug
Amperage Running: 5.0A Starting: 20A
Refrigerant Charge R134a / 200g
Operating Conditions Ambient Temp.: 5-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.05-0.8MPa
Voltage Range: Rated Voltage ±10%
Additional Parts 87000105 High capacity Water Filter System
87000107 450mm Replacement Cartridge
87000149 Water Filter System & Guage
81000116 Stainless Steel Hose
95001013 Adjustable Leg

Other Details

Item No.:
91000101
Specifications:
