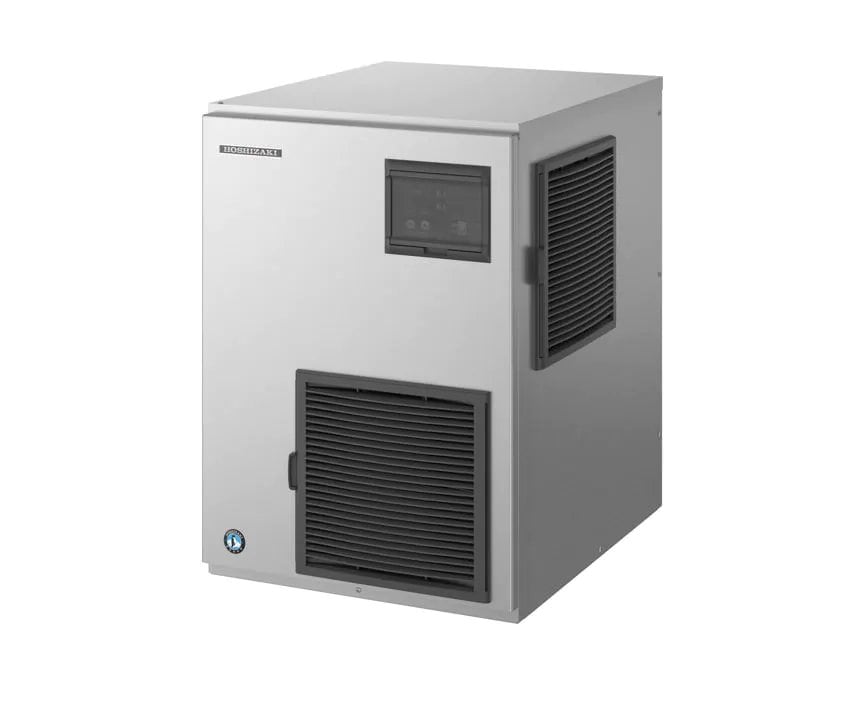

Hoshizaki FM-480AKE-N 360KG NUGGET ICE MAKER

  • Image 1
  • Image 2
Brand:

PURE & COOL NUGGET ICE MAKER

This modular ice maker produces nugget ice, which is often used for producing display of fish, fresh food and bottled beverages. Utilizing the most efficient ice making process due to the unique auger system, water consumption is equal to ice production.

Disclaimer: Image shown displays the Hoshizaki FM-480AKE-N with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)

Features

  • “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
  • Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
  • Automatic flush function, helps keep the ice making system clean.
  • Controller board with Operational Status display assists in trouble shooting.
  • Due to the auger system, water consumption is equal to ice production.
  • 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.

Specifications

Production Capacity per 24hours Approx. 430kg @10°C Air temp; 10°C Water



Approx. 360kg @ 21°C Air temp; 15°C Water

Approx. 290kg @ 32°C Air temp; 21°C Water

Max Storage Capacity 91000025 Ice Storage Bin
91000026 Ice Storage Bin
91000027 Ice Storage Bin
91000053 Ice Storage Bin
91000054 Ice Storage Bin
Width 560mm
Depth 700mm
Height 780mm
Weight Net 95kg
Packed Weight 102kg
Cooling Air
AC Supply Voltage 1 PHASE 230V 50Hz / 10 AMP Plug
Amperage Running: 8.4A Starting: 43A
Refrigerant Charge R404A
Operating Conditions Ambient Temp.: 5-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±10%
Additional Parts 91000025 Ice Storage Bin
91000026 Ice Storage Bin
91000027 Ice Storage Bin
91000053 Ice Storage Bin
91000054 Ice Storage Bin
96000006 Top Kit
96000007 Top Kit
96000008 Top Kit
87000123 Water Filter Kit Twin 450mm cartridges
87000107 450mm Replacement Cartridge
87000149 Water Filter System & Guage
81000116 Stainless Steel Hose
95001013 Adjustable Leg

Other Details

Item No.:
91000529
