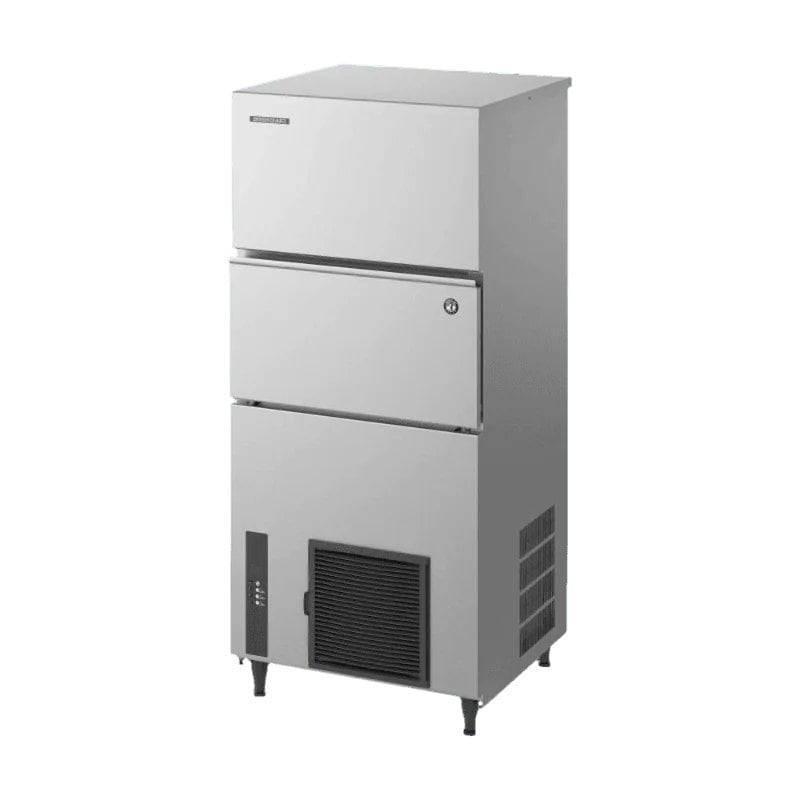

Hoshizaki IM-240NE-21 180KG CUBE ICE MAKER

  • Image 1
Brand:

This self-contained cube ice maker uses Natural Refrigerant R290 which is environmentally friendly and energy-efficient. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. The cubes are easily recognized by its precise shape, clarity and slow dilution. This is particularly important for ice that is used in premium beverages like cocktails, as it protects the integrity and flavour of the drink.

Features

  • New intelligent control circuit dedicated to saving power and water consumption.
  • Micro computer controller controls ice making process to work at peak performance in any conditions.
  • Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
  • New 7 segment operational display panel for ease of use.
  • Unique closed cell water circuit for ultimate contamination protection.
  • Durable stainless steel exterior.
  • Easily accessible and cleanable air filters reduce costly callouts.
  • Exceptionally hard crystal clear cubes that melt slowly.
  • Auto rinse and flush cycle.
  • 3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.

Specifications

Production Capacity per 24hours Approx. 190kg @10°C Air temp; 10°C Water
Approx. 180kg @21°C Air temp; 15°C Water
Approx. 165kg @32°C Air temp; 21°C Water
Max Storage Capacity Approx. 110kg
Freeze Cycle Time Approx. 15 Min
Ice Production Per cycle Approx. 2.1kg/360pcs
Width 704mm
Depth 665mm
Height 1580mm
(Includes 70mm-110mm Legs)
Weight Net 111kg
Packed Weight 128kg
Cooling Air
AC Supply Voltage 1 PHASE 220-240V 50Hz / 10 AMP Plug
Amperage Running: 6.6A Rated: 6.6A Starting: 35A
Refrigerant Charge R404A / 500g
Operating Conditions Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±6%
Additional Parts 87000105 High capacity Water Filter System
87000149 Water Filter System & Guage
81000116 Stainless Steel Hose
95001013 Adjustable Leg
