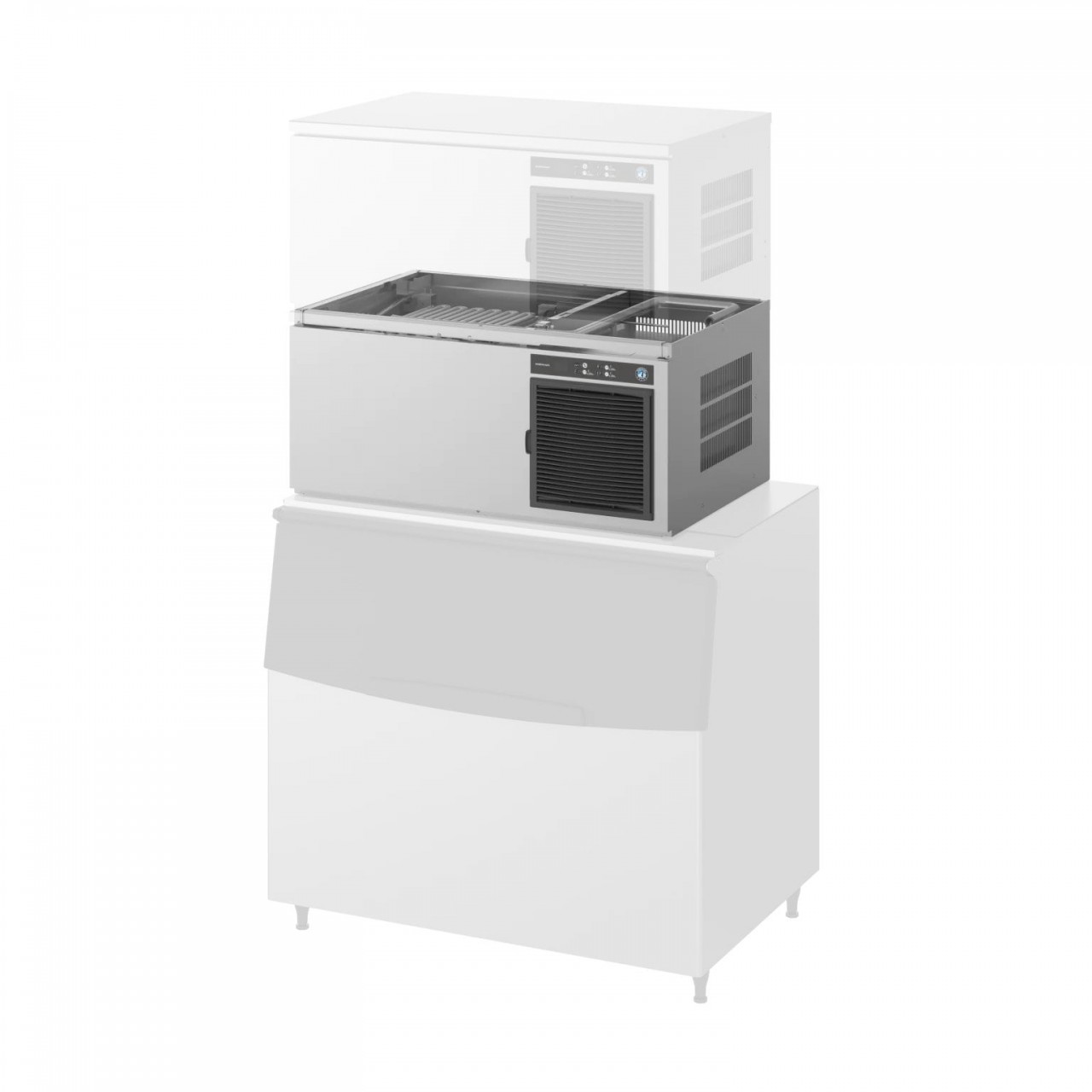

Loading... Please wait...The Hoshizaki IM-240XNE is a cube ice maker that can be stacked, capable of producing an impressive 205 kg of premium cube ice within a 24-hour timeframe.
Each Cuber model comes with an integrated electronic control system, guaranteeing an efficient ice production process even when conditions change. With this automated system in place, our Cubers consistently generate substantial quantities of high-grade ice cubes without the need for additional manual intervention or adjustments.
| Production Capacity per 24hours | Approx. 205kg @ 21°C Air temp; 15°C Water Approx. 160kg @ 32°C Air temp; 21°C Water |
| Max Storage Capacity | Select Bin & Kit |
| Freeze Cycle Time | Approx. 19 Min |
| Ice Production Per cycle | Approx. 3.2kg/140pcs |
| Width | 1084mm |
| Depth | 700mm |
| Height | 500mm |
| Weight Net | 84kg |
| Packed Weight | 98kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 10 AMP Plug |
| Amperage | Running: 6.6A |
| Refrigerant Charge | R404A / 480g |
| Operating Conditions | Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage Range: Rated Voltage ±6% |
| Additional Parts | 87000105 High capacity Water Filter System 87000149 Water Filter System & Guage 81000116 Stainless Steel Hose 6000036 Ice Machine Installation Kit |
