Loading... Please wait...CHILL BEVERAGES WITH MINIMAL DILUTION

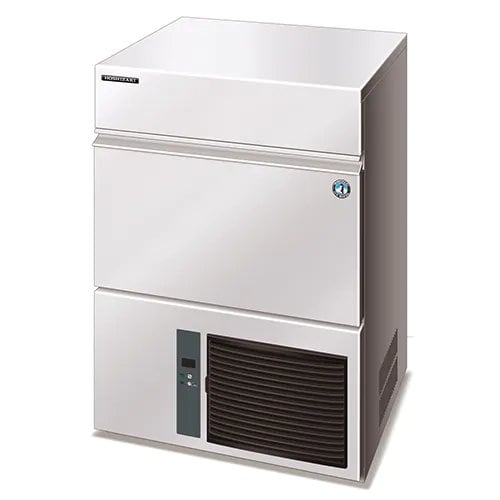

The Hoshizaki IM-65NE-Q is a self-contained under counter ice maker producing clean, pure and perfectly round Ball Ice. It is suitable for placement in bars. Produces up to 20kg per 24 hours and has a storage capacity of 17kg.
| Production Capacity per 24hours | Approx. 26kg @10°C Air temp; 10°C Water Approx. 24kg @21°C Air temp; 15°C Water Approx. 20kg @32°C Air temp; 21°C Water |
| Max Storage Capacity | Approx. 17kg (Bin Control Setting Approx. 9 kg) |
| Freeze Cycle Time | Approx. 33 Min |
| Ice Production Per cycle | Approx. 0.67kg/15pcs |
| Width | 633mm |
| Depth | 506mm |
| Height | 950mm (Includes 90mm-125mm legs) |
| Weight Net | 53kg |
| Packed Weight | 66kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz /10 AMP Plug |
| Amperage | Running: 2.9A Rated: 2.9A Starting: 17A |
| Refrigerant Charge | R134a / 200g |
| Operating Conditions | Ambient Temp.: 1-40°CWater Supply Temp.: 5-35°CWater Supply Pressure: 0.07-0.8MPa (0.7-8bar)Voltage Range: Rated Voltage ±6% |
| Additional Parts | 87000104 Low capacity Water Filter System 87000106 320mm Replacement Cartridge 87000148 Water Filter Kit & Guage 87000146 Water Filter 81000116 Stainless Steel Hose 95001013 Adjustable Leg |
