- Hoshizaki KM-590DJ-S 590KG CRESCENT ICE MAKER
Categories
LEADING THE FUTURE OF ICE PRODUCTION
The Hoshizaki KM-590DJ-S ice machine produces up to 590kg of clear hard crescent ice a day and has a range of ice storage bins to suit your needs.
The KM series efficient CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
Ideal for fast selling establishments such as nightclubs, sporting and entertainment events.

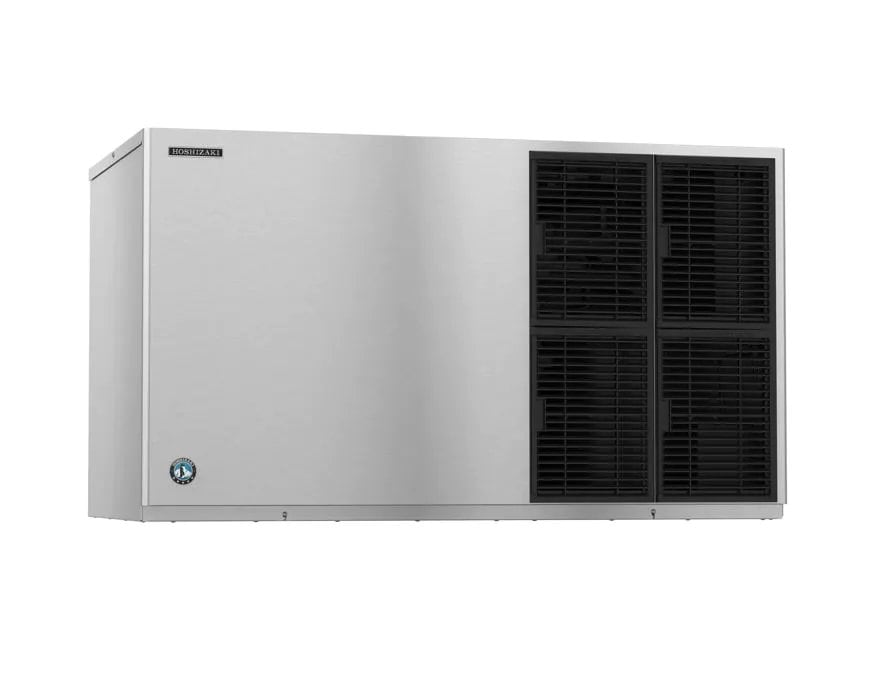

Disclaimer: Image shown displays the Hoshizaki KM-590DJ-S with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)
Features
- Individually shaped crescent ice.
- Protected by HoshiGuard Antimicrobial Agent.
- CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
- EverCheck Control board with audible alarm and diagnostic features, designed to assist services technicians in diagnosing problems.
- Durable stainless steel exterior.
- Easily removable & cleanable air filters on front panel.
- Ice storage bin, top kit and water filter sold separately.
Specifications
| Production Capacity per 24hours | Approx. 630kg @ 10°C Air temp; 10°C Water Approx. 590kg @ 21°C Air temp; 15°C Water Approx. 500kg @ 32°C Air temp; 21°C Water |
| Freeze Cycle Time | Approx. 28min |
| Ice Production Per cycle | Approx. 12.9kg / 1,440pcs |
| Width | 1219mm |
| Depth | 695mm |
| Height | 695mm |
| Weight Net | 136kg |
| Packed Weight | 160kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 15 Amp Plug |
| Amperage | Running: 11.35A Starting: 58A |
| Refrigerant Charge | R404A/1,900g |
| Operating Conditions | Ambient Temp.: 7-38°C Water Supply Temp.: 7-32°C Water Supply Pressure: 0.07-0.78MPa (0.7-7.8bar) Voltage Range: 198 – 254V |
| Electrical consumption | 2,080W (AT. 32°C; WT 21°C) |
| Water Consumption | Approx. 1.15m3/d (AT. 21°C; WT 15°C) |
| Compatible Water Filter | HLF32 Twin Filter System (Sold separately) |
| Installation Kits | 91000053 Ice Storage Bin 91000054 Ice Storage Bin 95001013 Adjustable Leg 91000130 Dispenser 91000100 Hotel/Motel Ice Dispenser 91000063 Dispenser 64000088 Top Kit 87000123 Water Filter Kit Twin 450mm cartridges 87000107 450mm Replacement Cartridge 87000149 Water Filter System & Guage 81000116 Stainless Steel Hose 6000036 Ice Machine Installation Kit |
Other Details
Item No.:
91000909
Specifications:
