Hoshizaki KM-80C HC 68KG CRESCENT ICE MAKER

Brand:

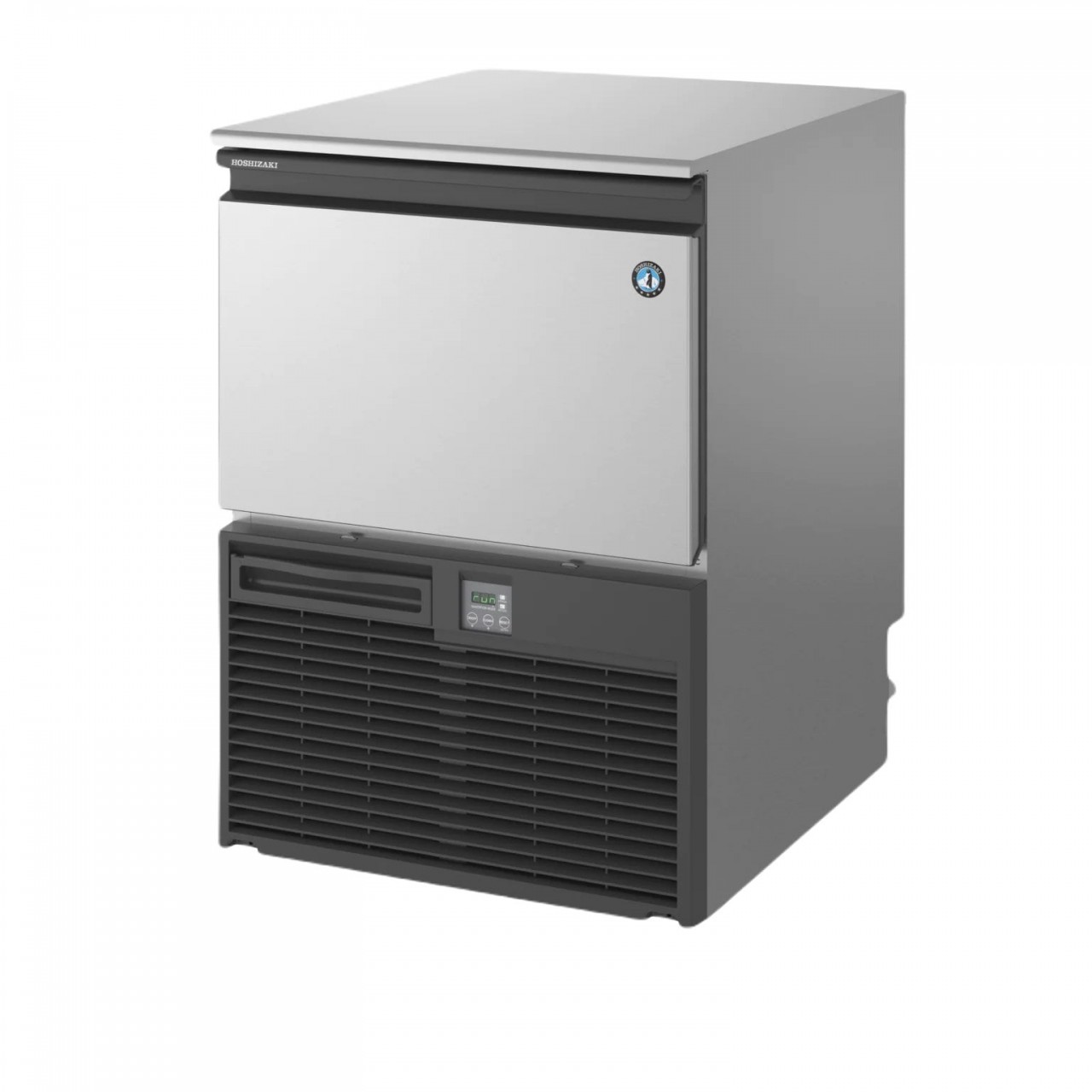

This Hoshizaki KM-80C-HC is a self-contained Crescent Edge ice maker producing up to 75 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.

The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.

Features

Individual premium crescent cube with no ice bridging.
Exceptionally hard crystal-clear cubes that melt slowly.
Durable stainless-steel exterior.
Slide in air filter at front for easy cleaning -maintainingperformance efficiency.
Double-sided stainless-steel evaporator for all waterconditions -produces more ice in less cycles.
Flush mount to rear wall.
Good in hard water areas.
Snap in water tank design –easy to remove for sanitisation.
Low electrical consumption.
Low water consumption.
LED lights and audible alarms.
Comes standard with Hex Bolt legs for underbenchinstallation.

Specifications

Production Capacity per 24hours	Approx. 68kg @ 21°C Air temp; 15°C Water Approx. 55kg @ 32°C Air temp; 21°C Water
Max Storage Capacity	Approx. 34kg
Freeze Cycle Time	Approx. 23min
Ice Production Per cycle	Approx. 1.15kg / 130pcs
Width	605mm
Depth	712mm
Height	842mm including hex bolt legs 988mm with 150mm adjustable legs
Weight Net	50kg
Packed Weight	63kg
Cooling	Air
AC Supply Voltage	1 PHASE 220-240V 50Hz/ 10Amp Plug
Amperage	Running: 2.1A Starting: 12.5A
Refrigerant Charge	R290/147g
Operating Conditions	Ambient Temp.: 7-38°C Water Supply Temp.: 7-32°C Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage Range: Rated Voltage ±6%
Additional Parts	87000104 Low capacity Water Filter System 87000106 320mm Replacement Cartridge 87000148 Water Filter Kit & Guage 87000146 Water Filter 81000116 Stainless Steel Hose 95001013 Adjustable Leg

Other Details

Item No.:

91000149

Specifications:

PDF Download
